Heavy Duty Hitch Pins | Pin-Lock Hitch Pins | Tension Lock Hitch Pins

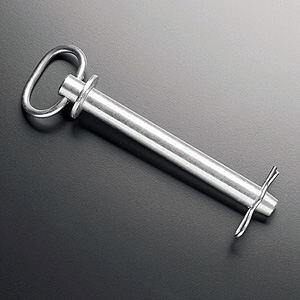

HEAVY DUTY HITCH PINS (PDF - 88kb)
(+) Enlarge
| CARBON STEEL WITH ZINC PLATING |
|
Part # |
Dia |
Usable Length |
|
12HD |
1/2" |
4" |
|
58HD |
5/8" |
4-1/2" |
|
34HD |
3/4" |
4-1/2" |
|
78HD |
7/8" |
4-1/2" |
|
100HD |
1" |
4-1/2" |
|
586HD |
5/8" |
6" |
|
3465HD |
3/4" |
6-1/2" |
|
7865HD |
7/8" |
6-1/2" |
|
1065HD |
1" |
6-1/2" |
|
1187HD |
1-1/8" |
7" |
|
1257HD |
1-1/4" |
7" |
| back to top |

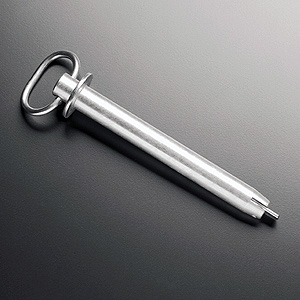

PIN-LOCK HITCH PINS (PDF - 87kb)
(+) Enlarge
| CARBON STEEL WITH ZINC PLATING |
|
Part # |
Dia |
Usable Space |
# Per Pkg |
|
38H |
3/8" |
3" |
25 |
|
384H |
3/8" |
4" |
25 |
|
12H |
1/2" |
3-1/2" |
12 |
|
125H |
1/2" |
5" |
25 |
|
58H |
5/8" |
4-1/2" |
25 |
|
34H |
3/4" |
4-1/2" |
25 |
|
78H |
7/8" |
4-1/2" |
12 |
|
100H |
1" |
4-1/2" |
12 |
|
586H |
5/8" |
6" |
25 |
|
346H |
3/4" |
6" |
25 |
|
786H |
7/8" |
6" |
12 |
|
1006H |
1" |
6" |
12 |
|
1187H |
1-1/8" |
7" |
10 |
|
1250H |
1-1/4" |
7" |
10 |

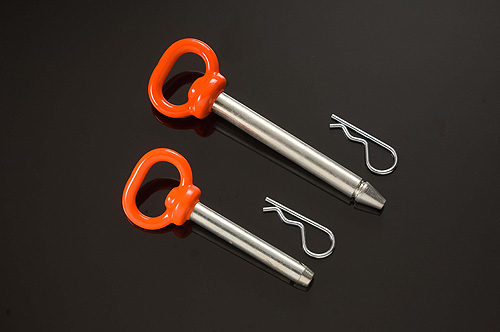

TENSION LOCK HITCH PINS (PDF - 89kb)
(+) Enlarge
| CARBON STEEL WITH ZINC PLATING |
|
Part # |
Dia |
Usable Space |
# Per Pkg |
|
38S |
3/8" |
2-3/4" |
25 |
|
384S |
3/8" |
4" |
25 |
|
12S |
1/2" |
3-1/2" |
12 |
|
1255S |
1/2" |
5-1/2" |
12 |
|
58S |
5/8" |
3-1/2" |
25 |
|
5855S |
5/8" |
5-1/2" |
25 |
|
34S |
3/4" |
3-1/2" |
25 |
|
346S |
3/4" |
6 |
25 |
|
625B |
13/16" |
6-1/4" |
12 |
|
78S |
7/8" |
3-1/2" |
25 |
|
786S |
7/8" |
6" |
12 |
|
100S |
1" |
3-1/2" |
12 |
|
106S |
1" |
6" |
12 |
|
346S |
3/4" |
6" |
25 |
|
625B |
13/16" |
6-1/4" |
12 |
