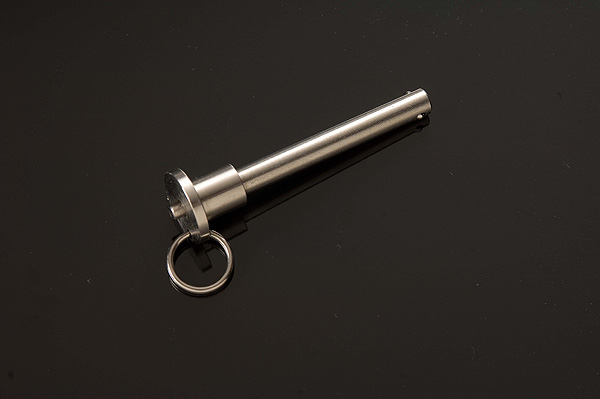

STAINLESS STEEL PUSH LOCK PINS (PDF - 50kb)
(+) Enlarge
|
Item |
A |
B |
|
14-11SSPL |
1/4 |
1 3/8 |
|
14-14SSPL |
1/4 |
1 3/4 |
|
14-18SSPL |
1/4 |
2 1/4 |
|
14-20SSPL |
1/4 |
2 1/2 |
|
516-11SSPL |
5/16 |
1 3/8 |
|
516-14SSPL |
5/16 |
1 3/4 |
|
516-18SSPL |
5/16 |
2 1/4 |
|
516-20SSPL |
5/16 |
2 1/2 |
|
38-11SSPL |
3/8 |
1 3/8 |
|
38-14SSPL |
3/8 |
1 3/4 |
|
38-18SSPL |
3/8 |
2 1/4 |
|
38-20SSPL |
3/8 |
2 1/2 |

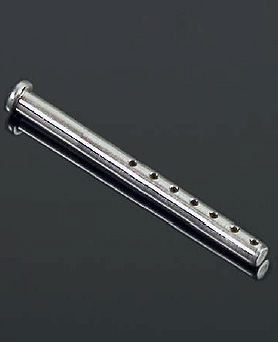

ADJUSTABLE STAINLESS STEEL CLEVIS PINS (PDF - 163kb)
(+) Enlarge
| 18-8 STAINLESS STEEL |
|
|
Item |
A B |
Holes |
|
14-8ACSS |
1/4 X 1 |
3 Holes |
|
14-12ACSS |
1/4 X 1 1/2 |
5 Holes |
|
14-16ACSS |
1/4 X 2 |
6 Holes |
|
14-20ACSS |
1/4 X 2 1/2 |
7 Holes |
|
14-24ACSS |
1/4 X 3 |
7 Holes |
|
516-8ACSS |
5/16 X 1 |
3 Holes |
|
516-12ACSS |
5/16 X 1 1/2 |
4 Holes |
|
516-16ACSS |
5/16 X 2 |
6 Holes |
|
516-20ACSS |
5/16 X 2 1/2 |
7 Holes |
|
516-24ACSS |
5/16 X 3 |
7 Holes |
|
516-28ACSS |
5/16 X 3 1/2 |
7 Holes |
|
516-32ACSS |
5/16 X 4 |
7 Holes |
|
38-8ACSS |
3/8 X 1 |
3 Holes |
|
38-12ACSS |
3/8 X 1 1/2 |
5 Holes |
|
38-16ACSS |
3/8 X 2 |
6 Holes |
|
38-20ACSS |
3/8 X 2 1/2 |
7 Holes |
|
38-24ACSS |
3/8 X 3 |
7 Holes |
| 38-28ACSS |
3/8 X 3 1/2 |
7 Holes |
| 38-32ACSS |
3/8 X 4 |
7 Holes |
| 12-16ACSS |
1/2 X 2 |
6 Holes |
| 12-20ACSS |
1/2 X 2 1/2 |
7 Holes |
| 12-24ACSS |
1/2 X 3 |
7 Holes |
| 12-28ACSS |
1/2 X 3 1/2 |
7 Holes |
| 12-32ACSS |
1/2 X 4 |
7 Holes |
