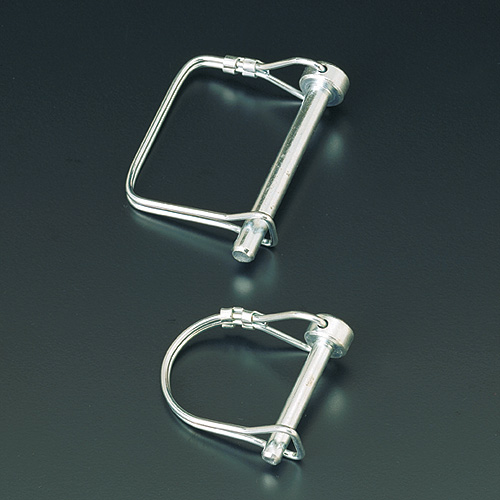

LOCK PINS (SQUARE) ,
LOCK PINS (ROUND) - (PDF - 91kb, 95kb)
(+) Enlarge
| CARBON STEEL WITH ZINC FINISH |
|
Part # |
Handle (Type) |
Dia |
|
12-3SWLP |
Square |
1/2" |
|
14-13LP |
Round |
1/4" |
|
14-16LP |
Round |
1/4" |
|
14-20LP |
Square |
1/4" |
|
14-22LP |
Square |
1/4" |
|
14-22LPR |
Round |
1/4" |
|
516-13LP |
Round |
5/16" |
|
516-16LP |
Round |
5/16" |
|
516-20LP |
Square |
5/16" |
|
516-22LP |
Square |
5/16" |
|
516-26LP |
Square |
5/16" |
|
516-22LPR |
Round |
5/16" |
|
38-13LP |
Round |
3/8" |
|
38-16LP |
Round |
3/8" |
|
38-20LP |
Square |
3/8" |
|
38-22LP |
Square |
3/8" |
|
38-26LP |
Square |
3/8" |
|
38-22LPR |
Round |
3/8" |
| 18-8 STAINLESS STEEL (SQUARE) |
|
Item |
Diameter |
Usable Length |
|
14-20LPSS |
1/4 |
2 1/4 |
|
14-22LPSS |
1/4 |
2 1/2 |
|
516-20LPSS |
5/16 |
2 1/4 |
|
516-22LPSS |
5/16 |
2 1/2 |
|
38-20LPSS |
3/8 |
2 1/4 |
|
38-22LPSS |
3/8 |
2 1/2 |
| 18-8 STAINLESS STEEL (ROUND) |
|
Item |
Diameter |
Usable Length |
|
14-13LPSS |
1/4 |
1 3/8 |
|
14-16LPSS |
1/4 |
1 3/4 |
|
516-13LPSS |
5/16 |
1 3/8 |
|
516-16LPSS |
5/16 |
1 3/4 |
|
38-13LPSS |
3/8 |
1 3/8 |
|
38-16LPSS |
3/8 |
1 3/4 |
| back to top |
TAB LOCK PINS (PDF - 91kb)
(+) Enlarge
| CARBON STEEL WITH ZINC FINISH |
|
Item |
Diameter |
Usable Length |
|
14-16LPT |
1/4 |
1 3/4 |
|
516-16LPT |
5/16 |
1 3/4 |
|
38-16LPT |
3/8 |
1 3/4 |
|
516-22LPT |
5/16 |
2 1/2 |
|
38-22LPT |
3/8 |
2 1/2 |
| 18-8 STAINLESS STEEL |
|
Item |
Diameter |
Usable Length |
|
14-16LPTSS |
1/4 |
1 3/4 |
|
516-16LPTSS |
5/16 |
1 3/4 |
|
38-16LPTSS |
3/8 |
1 3/4 |
|
back to top |
SINGLE WIRE (PDF - 83kb)
(+) Enlarge
|
CARBON STEEL WITH ZINC FINISH |
|
Item |
A |
B |
C |
D |
E |
F |
G |
|
12-3SWLP |
3/4 |
5/16 |
3 1/2 |
1/2 |
3 3/32 |
1 5/8 |
3 |
| back to top |
